Dehumidifiers > Desiccant Dehumidifiers > MX² Series

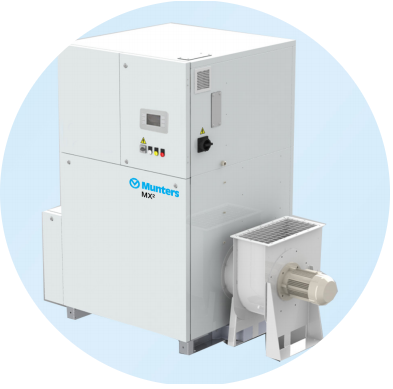

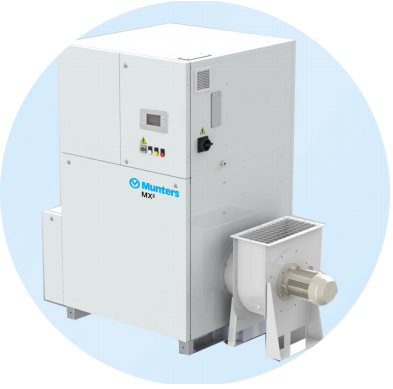

MX² Series Desiccant Dehumidifiers (3000 - 9500 m³/h)

Designed for warehouses, production facilities etc. Regeneration by electricity, steam or gas. Heat recovery system available for even higher efficiency.

The Energy Recovery Purge (ERP) or Energy Efficiency Purge (EEP)design is available as a standard option in order to save energy. The MX² Range is equipped with a number of alarm funtions to ensure total control of the dehumidification process. Frame casing and outer panels are made of corrosion resistant AluZink and coated in RAL 7035. The MX²  dehumidifiers covers a wide range of needs by providing a variety of standard functions. The numerous options will allow pre- and post treatment by simply adding mechanical and electrical components.

The MX² dehumidifiers can be supplied with 3 different reactivation alternatives - electrical, steam and gas. A service indicator activates when a preventative service is due, this is a standard feature. To make installation easier the process fan inlet has been designed to allow for different outlet positions. The electrical equipment conforms to EN 60204 (IEC204). The MX² series of dehumidifiers conform to both harmonised European standards and technical specifications for CE marking


MX²30

Nominal airflow 3000 m³/h. Max. power consumption 32,6 kW/El and 2,6 kW/Steam or Gas at full load.

The MX² 30 combines traditional Munters strengths like efficiency and robustness with modern state of the art technology like modulating RH control and multiple language display. Low energy consumption and reliability are important in todays processes. The new electronic control panel includes a number of different energy saving opportunities including optional Variable Frequency Drive (VFD).

Download PDF >


MX²40

Nominal airflow 4000 m³/h. Max. power consumption 46,8 kW/El and 4,8 kW/Steam or Gas at full load.

The MX² 40 combines traditional Munters strengths like efficiency and robustness with modern state of the art technology like modulating RH control and multiple language display.
Low energy consumption and reliability are important in todays
processes. The new electronic control panel includes a number of
different energy saving opportunities including optional Variable
Frequency Drive (VFD).

Download PDF >


MX²55

Nominal airflow 5500 m³/h. Max. power consumption 40,1 kW/El and 4,1 kW/Steam or Gas at full load.

The MX² 55 combines traditional Munters strengths like efficiency and robustness with modern state of the art technology like modulating RH control and multiple language display.
Low energy consumption and reliability are important in todays
processes. The new electronic control panel includes a number of
different energy saving opportunities including optional Variable
Frequency Drive (VFD).

Download PDF >


MX²60

Nominal airflow 6000 m³/h. Max. power consumption 73,3 kW/El and 7,3 kW/Steam or Gas at full load.

The MX² 60 combines traditional Munters strengths like efficiency and robustness with modern state of the art technology like modulating RH control and multiple language display.
Low energy consumption and reliability are important in todays
processes. The new electronic control panel includes a number of
different energy saving opportunities including optional Variable
Frequency Drive (VFD).

Download PDF >





MX²80

Nominal airflow 8000 m³/h. Max. power consumption 94,8 kW/El and 10,8 kW/Steam or Gas at full load.

The MX² 80 combines traditional Munters strengths like efficiency and robustness with modern state of the art technology like modulating RH control and multiple language display.
Low energy consumption and reliability are important in todays
processes. The new electronic control panel includes a number of
different energy saving opportunities including optional Variable
Frequency Drive (VFD).

Download PDF >





MX²95

Nominal airflow 9500 m³/h. Max. power consumption 69,3 kW/El and 9,3 kW/Steam or Gas at full load.

The MX² 95 combines traditional Munters strengths like efficiency and robustness with modern state of the art technology like modulating RH control and multiple language display.
Low energy consumption and reliability are important in todays
processes. The new electronic control panel includes a number of
different energy saving opportunities including optional Variable
Frequency Drive (VFD).

Download PDF >
