Dehumidifiers > Desiccant Dehumidifiers > ML Series
ML Series Desiccant Dehumidifiers (180 - 1700 m³/h)
Excellent all-round units with integrated humidistats. Condensation units available as options, just like gas regeneration on the biggest units.

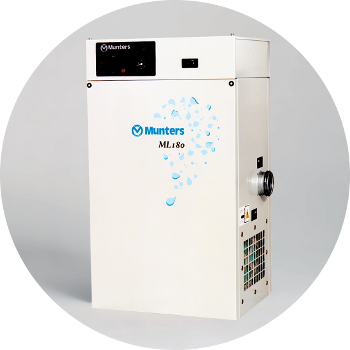

ML180
Nominal airflow 180 m³/h. Max. power consumption 2,05 kW at full load.
The ML180 desiccant dehumidifier is designed to efficiently dehumidify in low moisture applications. It is equipped with an internally sealed rotor unit. The rotor casing is constructed of durable thermoset plastic and contains isolated sections that provide a precise balance for dehumidification, reactivation, and heat recovery airflows.Its rugged formed metal frame and access panels are produced from corrosion resistant Aluzink®.
The electrical control system conforms to EN 60204 (IEC204) standards. The electrical components are mounted on busbars and are constructed of halogen-free plastic. The electrical system is designed for up to 690V and 60ºC. ML Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.
ML270
Nominal airflow 270 m³/h. Max. power consumption 3,06 kW at full load.
The ML270 desiccant dehumidifier is designed to efficiently dehumidify in low moisture applications. It is equipped with an internally sealed rotor unit. The rotor casing is constructed of durable thermoset plastic and contains isolated sections that provide a precise balance for dehumidification, reactivation, and heat recovery airflows.Its rugged formed metal frame and access panels are produced from corrosion resistant Aluzink®.
The electrical control system conforms to EN 60204 (IEC204) standards. The electrical components are mounted on busbars and are constructed of halogen-free plastic. The electrical system is designed for up to 690V and 60ºC. ML Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.
Download PDF >
ML420
Nominal airflow 420 m³/h. Max. power consumption 4,57 kW at full load.
The ML420 desiccant dehumidifier is designed to efficiently dehumidify in low moisture applications. It is equipped with an internally sealed rotor unit. The rotor casing is constructed of durable thermoset plastic and contains isolated sections that provide a precise balance for dehumidification, reactivation, and heat recovery airflows. Its rugged formed metal frame and access panels are produced from corrosion resistant Aluzink®.
The electrical control system conforms to EN 60204 (IEC204) standards. The electrical components are mounted on busbars and are constructed of halogen-free plastic. The electrical system is designed for up to 690V and 60º C. ML Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.
ML690
Nominal airflow 690 m³/h. Max. power consumption 7,82 kW at full load.
The ML690 desiccant dehumidifier is designed to efficiently dehumidify in low moisture applications. It is equipped with an internally sealed rotor unit. The rotor casing is constructed of durable thermoset plastic and contains isolated sections that provide a precise balance for dehumidification, reactivation, and heat recovery airflows. Its rugged formed metal frame and access panels are produced from corrosion resistant Aluzink®.
The electrical control system conforms to EN 60204 (IEC204) standards. The electrical components are mounted on busbars and are constructed of halogen-free plastic. The electrical system is designed for up to 690V and 60º C. ML Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.
ML1100
Nominal airflow 1100 m³/h. Max. power consumption 12,75 kW at full load.
The ML1100 desiccant dehumidifier is designed to efficiently dehumidify in low moisture applications. It is equipped with an internally sealed rotor unit. The rotor casing is constructed of durable thermoset plastic and contains isolated sections that provide a precise balance for dehumidification, reactivation, and heat recovery airflows. Its rugged formed metal frame and access panels are produced from corrosion resistant Aluzink®.
The electrical control system conforms to EN 60204 (IEC204) standards. The electrical components are mounted on busbars and are constructed of halogen-free plastic. The electrical system is designed for up to 690V and 60º C. ML Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.
ML1350
Nominal airflow 1350 m³/h. Max. power consumption 15,16 kW at full load.
The ML1350 desiccant dehumidifier is designed to efficiently dehumidify in low moisture applications. It is equipped with an internally sealed rotor unit. The rotor casing is constructed of durable thermoset plastic and contains isolated sections that provide a precise balance for dehumidification, reactivation, and heat recovery airflows. Its rugged formed metal frame and access panels are produced from corrosion resistant Aluzink®.
The electrical control system conforms to EN 60204 (IEC204) standards. The electrical components are mounted on busbars and are constructed of halogen-free plastic. The electrical system is designed for up to 690V and 60º C. ML Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.
ML17
Nominal airflow 1700 m³/h. Max. power consumption 21,2 kW/50Hz, 21,6 kW/60Hz at full load.
ML17 is a newly developed desiccant dehumidifer that comes as standard with a number of functions that are usually considered options. As with all other ML units, ML17 effectively dehumidifies to a low moisture level.Thanks to its unique design, the entire air treatment process of the ML series of dehumidifiers occurs in a closed rotor unit with tightly sealing rotor housings made of heat-resistant thermoset plastic.
A high level of regulation accuracy, over 10 alarm indicators, an operating time counter and the option of remote control come as standard in the integrated PLC unit with display.
Another new feature is the integrated service indicator, which signals when it is time for maintenance servicing.
The shell is made of Aluzinc and the outer panels are in painted Aluzinc. ML23 can be delivered with 3 different reactivation alternatives – electricity, steam or gas.
The electrical equipment conforms to EN 60204 (IEC204) standards. The electrical system is designed for voltages up to 480 V and an ambient temperature of up to 60 °C.
The ML series of dehumidifiers conform to both harmonised European standards and technical specifications for CE marking.
ML23
Nominal airflow 2300 m³/h. Max. power consumption 28,9 kW/50Hz, 29,6 kW/60Hz at full load.
ML23 is a newly developed desiccant dehumidifer that comes as standard with a number of functions that are usually considered options. As with all other ML units, ML23 effectively dehumidifies to a low moisture level.Thanks to its unique design, the entire air treatment process of the ML series of dehumidifiers occurs in a closed rotor unit with tightly sealing rotor housings made of heat-resistant thermoset plastic.
A high level of regulation accuracy, over 10 alarm indicators, an operating time counter and the option of remote control come as standard in the integrated PLC unit with display.
Another new feature is the integrated service indicator, which signals when it is time for maintenance servicing.
The shell is made of Aluzinc and the outer panels are in painted Aluzinc. ML23 can be delivered with 3 different reactivation alternatives – electricity, steam or gas.
The electrical equipment conforms to EN 60204 (IEC204) standards. The electrical system is designed for voltages up to 480 V and an ambient temperature of up to 60 °C.
The ML series of dehumidifiers conform to both harmonised European standards and technical specifications for CE marking.
